Tension wire clamp STD

In modern low‑voltage overhead ABC aerial bundled cable distribution networks, robust tension anchoring hardware plays an essential role for secure cable dead‑ending, absorbing span tension load and guaranteeing long‑term grid operating safety. Overhead tension wire clamps are continuously exposed to complex outdoor operating environments including strong wind pull‑off force, aeolian vibration, intensive UV radiation, large temperature swings and atmospheric pollution. Poor‑quality tension hardware may trigger cable slippage, polymer ageing cracking, component loosening and premature fitting failure. Such failures further lead to unexpected power supply interruptions and push up recurring operation‑and‑maintenance expenditure for utility operators, municipal authorities and network contractors. Tension wire clamp STD series anchor assemblies are widely deployed for dead‑ending single‑core LV‑ABC cables on utility poles and wall‑mount points across European and global low‑voltage distribution markets. Many installers, distributors and EPC contractors are looking for reliable, cost‑effective wedge‑type tension clamp solutions for 16‑120 mm² single‑core overhead ABC projects. Jera Line STD tension wire clamp is a proven wedge‑type anchoring solution developed for 16‑120 mm² single‑core LV‑ABC aerial bundled cables. This blog describes product definition, official technical specifications, structural highlights, practical application scenarios and core procurement benefits when selecting STD tension wire clamp for your overhead network projects.

What Is Tension Wire Clamp STD?

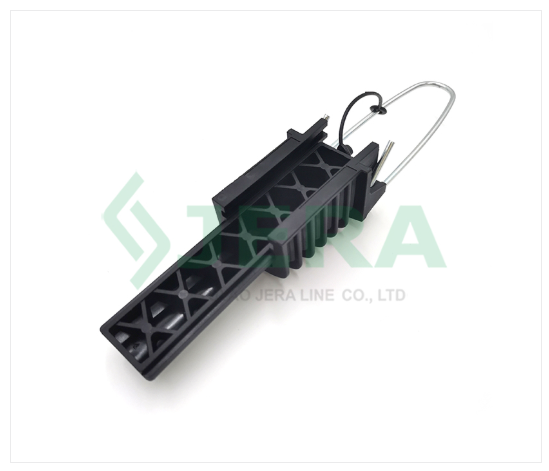

Tension wire clamp STD is a wedge‑style dead‑end tension clamp manufactured by Jera Line, specially engineered for anchoring single‑core LV‑ABC aerial bundled cables with insulated neutral messenger in low‑voltage overhead distribution networks up to 1 kV. It adopts self‑locking wedge gripping principle: as cable pulling tension rises in service, the internal wedges automatically tighten against the neutral messenger conductor to build stable clamping pressure, without manual torque adjustment. This ingenious self‑adjusting wedge‑locking design avoids over‑compression or local damage to cable outer sheath. No special crimping or torque tools are demanded during site installation; field crews only need basic hand accessories to complete anchoring work. This mechanism greatly streamlines overhead working workflows and minimises installation mistakes caused by human‑operated improper tightening force. The STD tension clamp is delivered as one integrated pre‑assembled unit, consisting of UV‑stabilized fiberglass‑reinforced polymer clamp housing, self‑locking polymer wedges and hot‑dip galvanized steel bail assembly. All mating components are pre‑matched inside factory, removing risk of lost loose small parts during transportation and field deployment.

Technical Specification

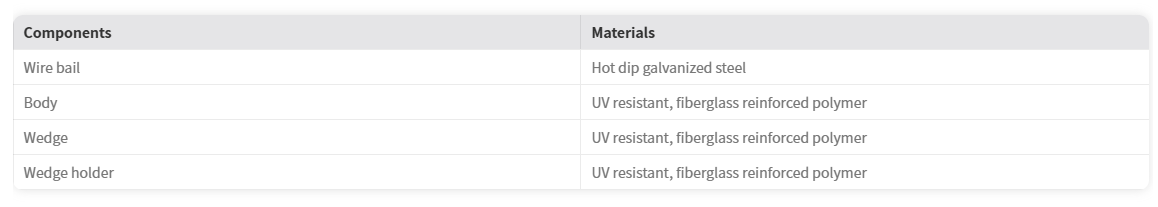

Components and Materials

The Low voltage tension wire clamp STD is manufactured directly by Jera Line. The clamp consists of following main parts:

1. Clamp housing: UV‑resistant fiberglass‑reinforced polymer
2. Self‑locking wedges: UV‑resistant fiberglass‑reinforced polymer
3. Wire bail: Hot‑dip galvanized steel

Key Features

• Self‑locking wedge‑type anchoring principle, automatic tightening with increasing cable tension for stable dead‑end holding performance.
• Pre‑assembled complete unit out‑of‑box, no separate‑part assembling required at height, lowering risk of component loss and field assembly errors.
• Tool‑friendly field installation; heavy hydraulic crimping equipment is not necessary, installation can be finished by simple hand‑operated fittings.
• High‑strength UV‑stable fiberglass‑reinforced polymer housing, resisting long‑term solar ultraviolet irradiation, temperature cycling and outdoor ageing.
• Wide cable adaptability, fully covering 16‑120 mm² single‑core LV‑ABC insulated neutral messenger conductors for mainstream overhead distribution projects.
• 12 kN minimum breaking load provides ample mechanical safety margin, coping with combined load of cable self‑weight, wind gust and ice coating for overhead spans.
• Soft contact wedge profile protects cable outer insulation sheath, prevents sheath crushing, indentation and abrasion under long‑term tension load.
• Every production batch undergoes in‑house lab mechanical tensile load testing complying with EN 50483‑4 overhead fitting evaluation criteria to validate actual breaking‑load performance before shipment.
• Compatible with standard pole anchor brackets and stainless‑steel banding hardware, forming a full anchoring kit without extra custom‑made adaptors.
• Factory‑direct supply from China, competitive bulk ex‑works pricing and pre‑order sample support available for field performance validation.

Applications of Jera Line Tension Wire Clamp STD

Jera Line STD tension wire clamp is purpose‑built for dead‑end anchoring tasks of 16‑120 mm² single‑core LV‑ABC cables in low‑voltage overhead distribution networks. It achieves firm, maintenance‑free cable termination by self‑locking wedge mechanism, and maintains reliable gripping performance under continuous wind‑induced line vibration:

• Overhead Line Dead‑End Termination Ideal for dead‑ending single‑core LV‑ABC aerial bundled cables at terminal poles, firmly locking the insulated neutral messenger to withstand full span pulling tension for overhead distribution routes.
• Angle‑Pole Anchoring Projects Suitable for corner poles where overhead lines change running direction; absorbs lateral pull force and keeps cable layout stable without additional auxiliary hardware modification.
• Municipal Street‑Lighting Overhead Networks Performs dead‑end anchoring for street‑light service ABC cables along traffic corridors, resisting long‑term outdoor vibration and atmospheric erosion in municipal public power infrastructure.
• Residential Grid Construction & Renovation Perfect for new residential district overhead network roll‑out as well as existing grid retrofitting; replaces legacy old‑style tension clamps for single‑core ABC cable overhead service drop connections.
• Industrial & Commercial Overhead Power Distribution Provides robust dead‑end anchoring for overhead trunk cables supplying factory zones, industrial parks and commercial area low‑voltage distribution infrastructure.
• Renewable‑Energy Overhead Distribution Applied for pole‑mount dead‑end termination of LV‑ABC distribution lines connected to ground‑mount solar sites and distributed PV micro‑grid overhead cable layouts.
• Emergency Overhead Maintenance & Repair Works Pre‑integrated unit enables fast on‑site replacement during grid breakdown repair work, supporting quick restoration of power supply in overhead distribution networks.

The STD tension wire clamp delivers safe, labour‑saving and budget‑efficient dead‑ending solutions for global low‑voltage overhead ABC projects. Its proven self‑locking wedge principle, broad cable‑size compatibility and tool‑free crimp installation characteristic make it a practical utility‑grade hardware choice for both new‑build network construction and legacy‑grid retrofit assignments.

Why Choose Jera Line as Your Tension Wire Clamp Supplier?

• Direct Factory Supply & Cost Efficiency Founded in 2012, Yuyao Jera Line is a specialised overhead LV‑MV cable accessories manufacturer located in Ningbo, China. Most product procedures including polymer injection moulding, component stamping, surface anti‑corrosion treatment and finished‑product assembly are completed fully in‑house. Cutting out intermediate traders enables competitive ex‑works bulk prices for global distributors and EPC partners. Standard STD tension wire clamp items are kept in stock to support 7‑15 working‑day shipment lead‑times for large‑volume project orders.
• Strict Quality Control Procedures To satisfy demanding overhead distribution project requirements, every STD tension wire clamp batch completes routine mechanical tensile testing, UV ageing simulation and material composition inspection inside our on‑site laboratory, complying with EN 50483‑4 and NFC 33‑020 international overhead fitting standards. Raw‑material incoming inspection is enforced before mass‑production to reject inferior polymer and steel raw‑material batches. Lab‑verified breaking‑load and anti‑ageing performance guarantees long‑term stable service under complex outdoor operating conditions. Selected product models can support third‑party laboratory type‑test certification upon project‑specific request.
• Full‑Range Overhead Hardware Portfolio Jera Line maintains a comprehensive catalogue of LV‑ABC overhead accessories, covering multiple series of tension clamps, suspension clamps, insulation piercing connectors, stainless‑steel banding and matching pole‑mount anchor brackets, alongside related auxiliary hardware such as cable ties, connection terminals and installation hand tools. Buyers can source complete sets of overhead line fittings for one utility project from a single manufacturer, without the hassle of coordinating several separate suppliers for different component items. This consolidates procurement workflows, simplifies parts‑matching risks caused by mixed‑source supplies, lowers multi‑supplier communication costs, reduces order‑coordination lead‑time and cuts cross‑border logistics overheads including multiple‑shipment freight, customs‑declaration work and incoming‑goods inspection procedures. It also brings greater convenience for project tender documentation preparation, as all technical datasheets and test reports can be obtained from one supplier for whole‑project submission.
• OEM and ODM Services Jera Line provides customised project‑oriented solutions to match diverse tender requirements and local market demands: laser marking customer logo, brand name or project‑specific codes on clamp housing or steel bail for easy brand identification; bespoke carton packaging including custom‑printed outer boxes, private‑label stickers and tailored packing quantities per carton to fit distributors’ warehouse management and on‑site material distribution. Special technical adjustments such as modified bail dimensions, alternative surface‑treatment options and customized assembly configurations are also available, all subject to internal engineering assessment and feasibility review. Pre‑order product samples can be supplied for customers to carry out field installation validation, mechanical performance checking and compatibility testing with existing cable types and pole‑mount accessories before formal large‑volume procurement. Sample reports and basic technical supporting documents can be delivered together with sample goods to assist your internal evaluation, tender submission and client demonstration work.
• Global Experience Jera Line overhead cable hardware has been exported to over 60 countries across Europe, Asia, Middle East, Africa and South America. Our multilingual sales‑technical team possesses deep understanding of local overhead grid specifications, tender document requirements and cross‑border shipment logistics. Our team keeps close track of regional utility standards, market certification requirements and common field‑installation pain points across different continents, enabling targeted suggestions for your specific project conditions. Whether you are working on public utility tender bidding, large‑scale rural grid renovation, municipal street‑light expansion or small‑size distributor stock‑order procurement, we are capable of offering tailored commercial quotations, technical document support and pre‑sales product consultation. We provide end‑to‑end technical and commercial support for customers deploying STD tension wire clamps in worldwide low‑voltage ABC distribution projects, including datasheet supplying, sample arrangement, order progress follow‑up, after‑sales problem solving and long‑term project‑reference sharing.

Conclusion

Selecting qualified tension wire clamp dead‑end anchoring hardware is critical to guarantee secure cable fixing and long service life for LV‑ABC overhead distribution networks. As key load‑bearing fittings on overhead poles, tension clamps continuously undertake cable span tension, wind vibration stress and outdoor environmental erosion throughout their service cycle. Inferior‑quality tension wire clamps may suffer insufficient breaking‑load capacity, polymer UV brittleness, galvanized‑component corrosion or unstable wedge‑locking performance. These defects bring hidden hazards such as cable slip‑off and power supply breakdown for utility projects, resulting in high‑cost after‑sales maintenance burdens for network operators. Therefore, distributors and EPC contractors should not merely focus on initial purchase cost, but pay close attention to raw‑material grade, lab‑tested mechanical data and real‑world field feedback when selecting wedge‑type tension clamps.

Jera Line STD tension wire clamp delivers utility‑verified, high‑strength dead‑end anchoring hardware complying with international overhead fitting standards. Each production batch undergoes tensile‑load validation inside Jera Line’s in‑house laboratory to confirm 12 kN minimum breaking‑load performance, ensuring reliable dead‑end performance under cable dead‑weight, wind dynamic pull and long‑term UV outdoor ageing. Its pre‑assembled self‑locking wedge construction drastically cuts down overhead installation labour time for field linemen.

Whether you require official technical datasheets, pre‑order evaluation samples or formal project quotations, please do not hesitate to get in touch with our sales team. We support sample assessment, bulk‑order delivery as well as custom OEM packaging solutions to satisfy diverse tender and project requirements. We look forward to establishing stable long‑term win‑win business cooperation with global partners from power‑utility, municipal‑engineering and renewable‑energy sectors.
