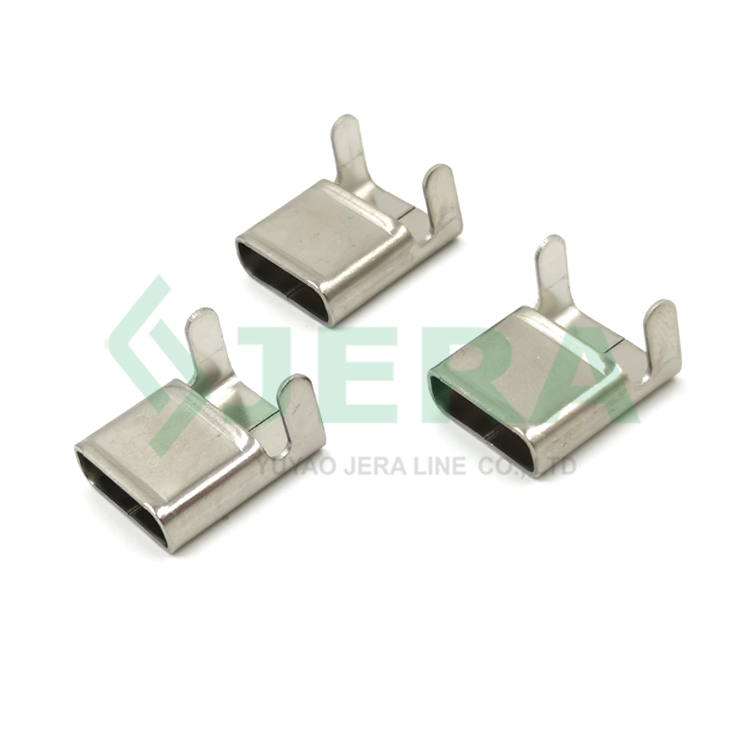

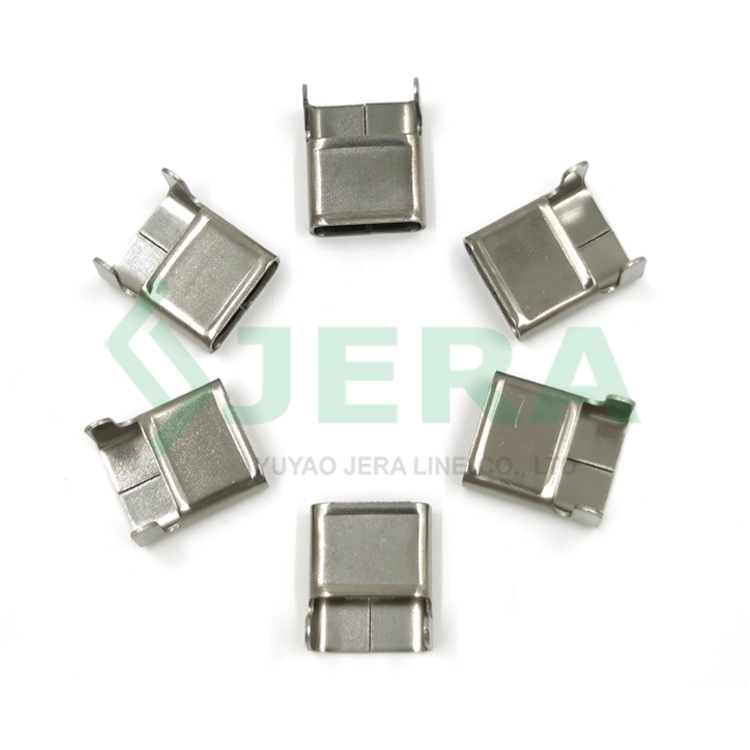

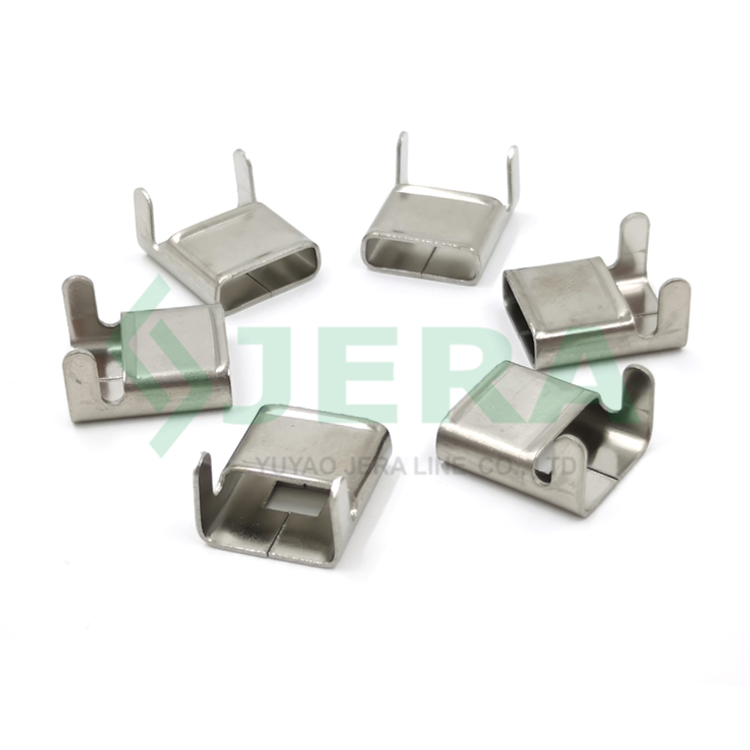

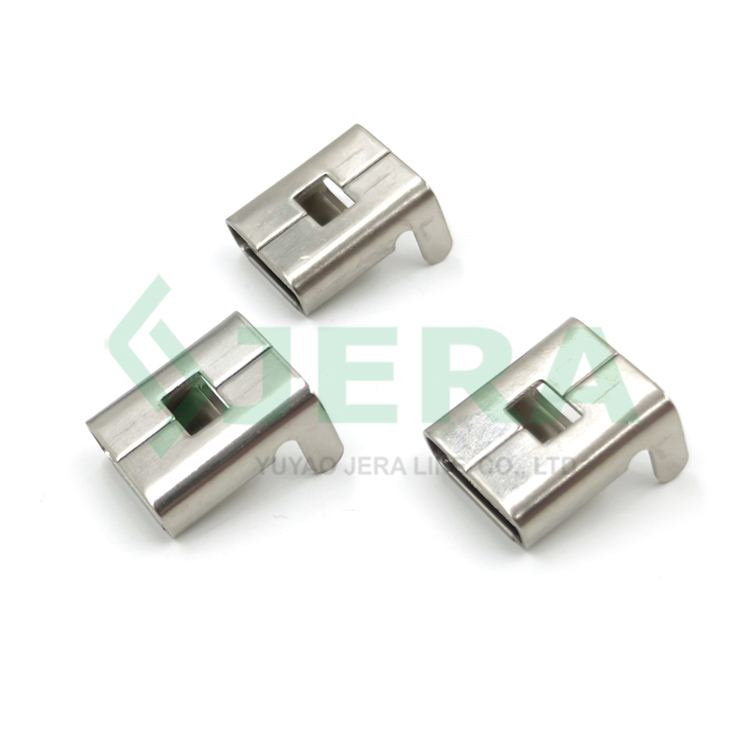

Stainless steel band buckle KL-13-L, either called Electrophoretic paint banding buckle, is a ear-lokt style buckle usually used together with stainless steel band and banding tools to attach accessories (pole fittings, suspension fittings etc) on poles orfix loose items together, widely used in many industries.
Stainless Steel Banding Buckle use to bundling and
securing cables and wires, especially in harsh or outdoor environments,Fixing electrical
components and control boxes to poles and other structures.
Technical specification
Product code
Max band width
Grades
KL-13-L
1/2“ (12.7mm)
201
Components and materials

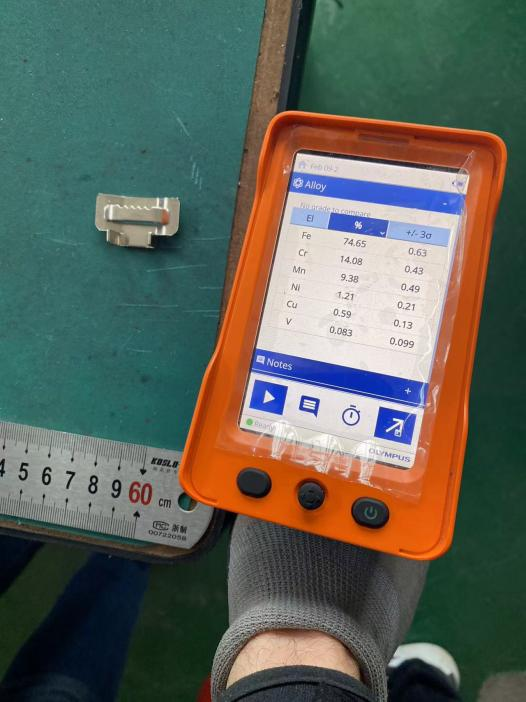

Test scope: Scan the steel wire with testing
equipment: XRF VATANA, and check the data result.
Test
Tensile strength test according to IEC 61284-1997
Machine: Testing machine ZD-4

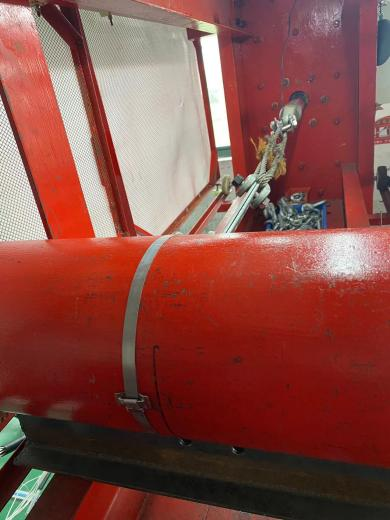

Test scope: Buckle intalled with stainless steel band on steel pole
and apply tension load on band. The test imitate the real usage of clamp during outdoor
application. After the required tensile load was reached buckle should not break or deformation.
Product name
Required tension force, KN
Conclusion
Buckle for Stainless Steel Strap Spool
7
Passed
Sample before test:

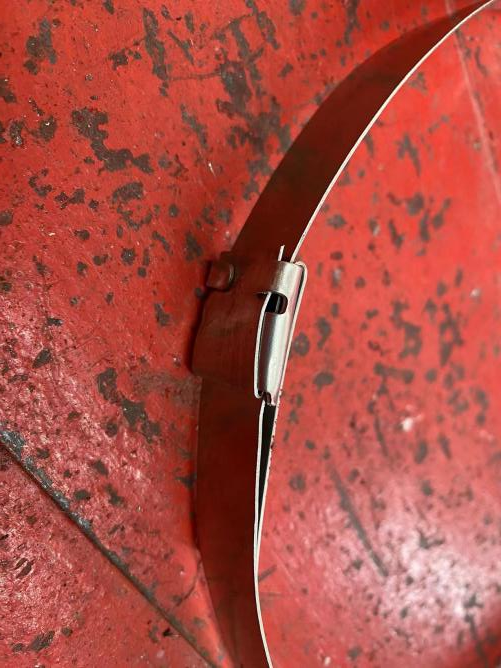

Test result:
Conclusion:

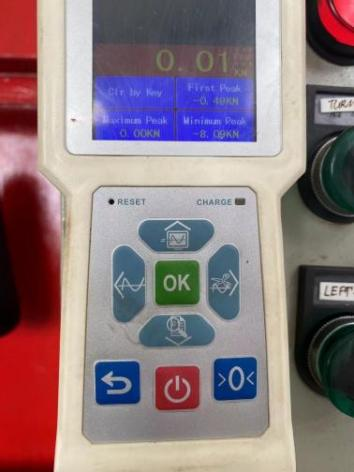

When the tensile load was reached 7.0KN, buckle did not show any
deformation or damage. After the tensile load was reached 7.43KN, the band broken but the buckle
still showed no deformation.
This buckle passed the tensile strength test, we certificate its
quality after inspection and approve for further usage.
