Best Solar trunk cable connection for 1500V DC

The Challenge of Modern Solar Installations

As solar farms scale up, 1500V DC systems have become the industry standard. They allow longer string lengths, reduce current, and improve efficiency. But with higher voltage comes the need for robust, reliable, and safe cable connections that can withstand harsh outdoor environments.

For 1500V DC solar trunk cable connections, the most reliable solution is to use Jera Line’s solar cable insulation piercing connectors (IPC). These connectors provide secure, low-resistance connections without stripping insulation.

Insulation Piercing Connectors (IPC) – Key Features

LV Insulation Piercing Connectors are designed to connect solar trunk cables without stripping insulation, making them ideal for fast and secure installations.

Core Advantages:

• No insulation stripping required – reduces installation time and risk of errors.
• Consistent contact pressure – ensures low resistance and stable electrical performance.
• Weatherproof sealing – protects against UV, moisture, and temperature extremes.
• Wide cable compatibility – supports common solar cable sizes (4mm², 6mm², 10mm², etc.).
• High voltage rating – tested and certified for 1500V DC solar systems.
• Durability – designed for long service life in demanding outdoor conditions.

IPC vs. Traditional Connections

IPC connectors for 1500V DC Solar truck cable -- Jera Line Models

Jera Line manufactures a range of insulation piercing connectors (IPC) designed for high‑voltage solar applications. Each model is engineered to meet different cable sizes and installation requirements, ensuring flexibility and reliability across utility‑scale projects.

Available Models:

• ZOP‑300 (95–300 mm² / 4–35 mm²) — a compact and efficient connector suitable for smaller cross‑section branch cables.
• ZOP‑395 (95–300 mm² / 95–300 mm²) — a versatile connector designed for mid‑range to large trunk‑to‑trunk cable connections.
• ZOP‑410 (240–400 mm² / 4–35 mm²) — a heavy‑duty option ideal for large trunk cables in demanding outdoor installations.
• ZOP‑57(16-185mm2/4-35mm2) — a specialized connector for branch or parallel connections, offering flexibility in solar cable harness layouts.

Each IPC model is tested for 1500V DC performance, ensuring safe and stable operation in modern solar power systems.

Why Choose Jera Line IPC Solutions to connect solar truck cable

Jera Line has developed a range of solar cable IPC connectors specifically for utility-scale solar projects. Their solutions stand out for several reasons:

• Reduced resistance of electrical contacts – conductor piercing technology.
• Min 20% Cabling saved - Ideal onsite/off site customization.
• Choose for Solar cabling upgrade/maintanance.
• High efficiency and less current losses.
• Long live span.

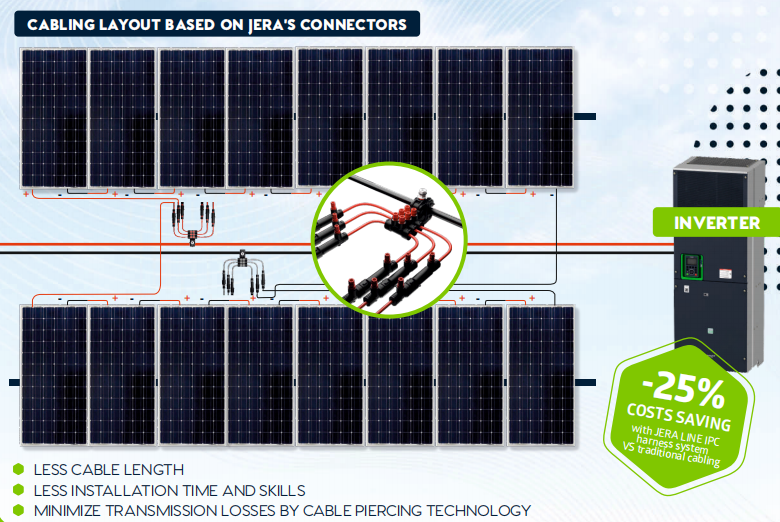

Cable harness sytem for off grid solar plants solution from Jera Line

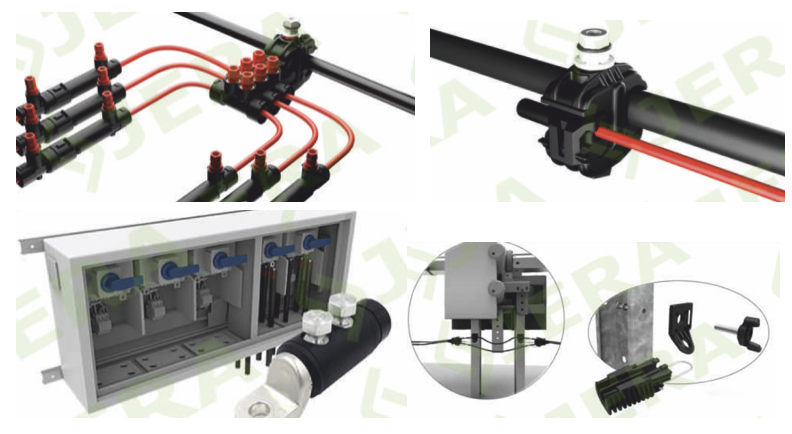

Beyond IPC connectors, Jera Line provides a comprehensive portfolio of solar cable solutions, including:

• CONNECTORS BUS/TAP PIERCING, 1 WAY
• CONNECTORS BUS/MULTI TAP PIERCING, 2-6 WAYS
• IPC PV CABLE HARNESS (FUSE AND W/O FUSE).
• CABLE LUGS FOR PV BUS CABLE, APPLIED WITH PV COMBINERS
• ANCHORING AND SUSPENSION CABLE ATTACHMENTS, BRACKETS, BANDINGS.

Conclusion

For 1500V DC solar trunk cable connections, Jera Line’s insulation piercing connectors are the best choice. Their multi-type IPC connectors combine safety, efficiency, and durability, making them the go-to solution for modern solar installations. With proven performance and global expertise, Jera Line ensures your solar project runs reliably for decades.
