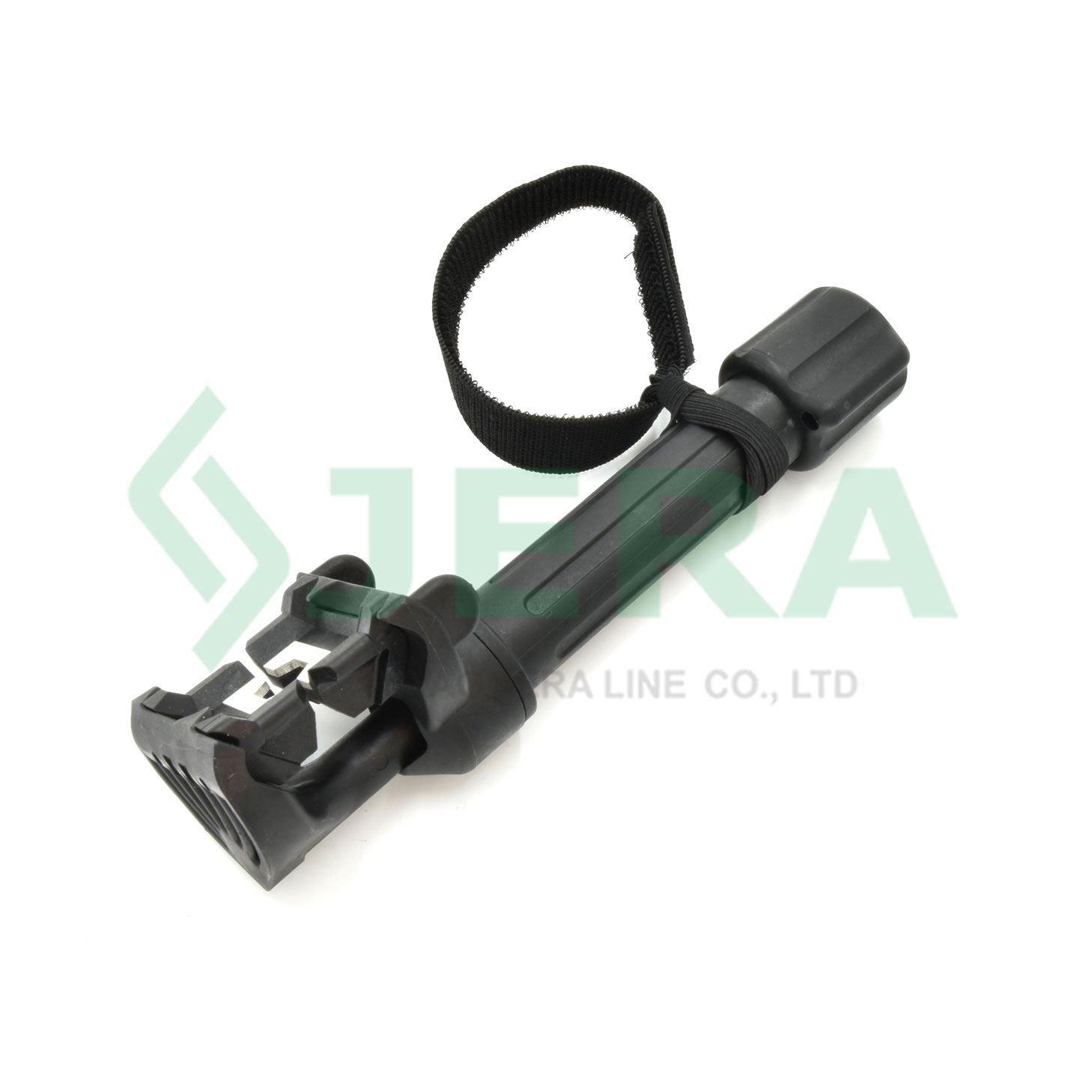

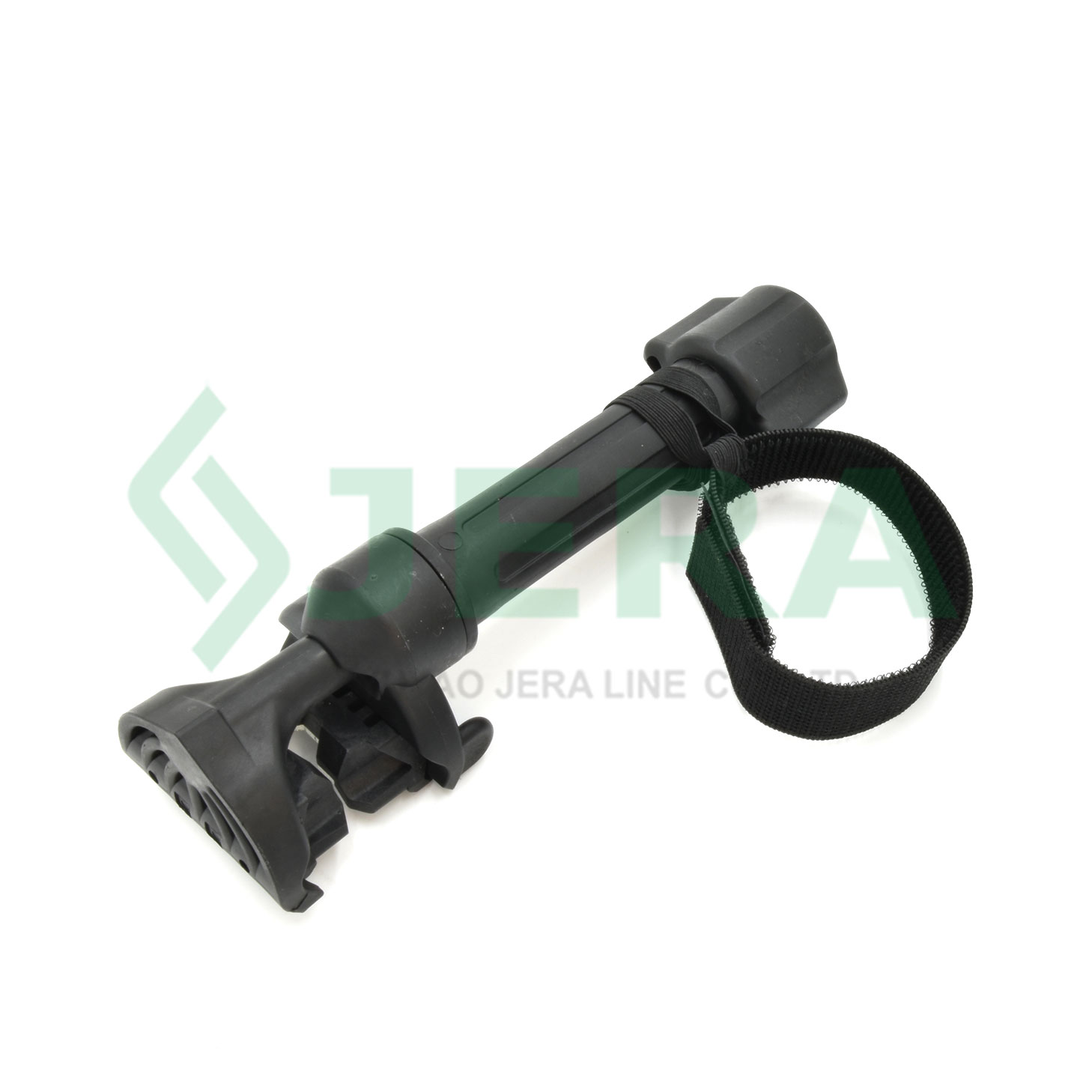

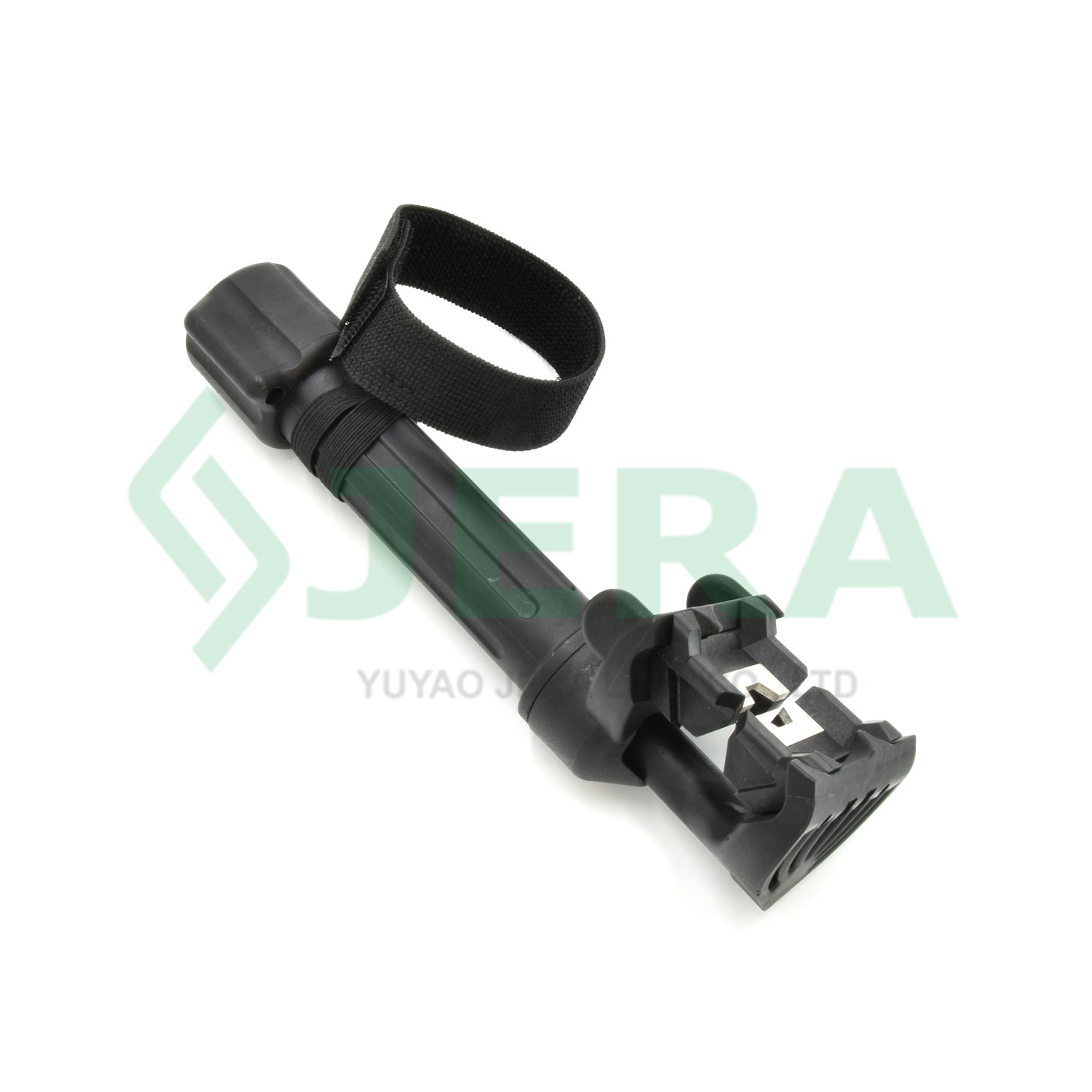

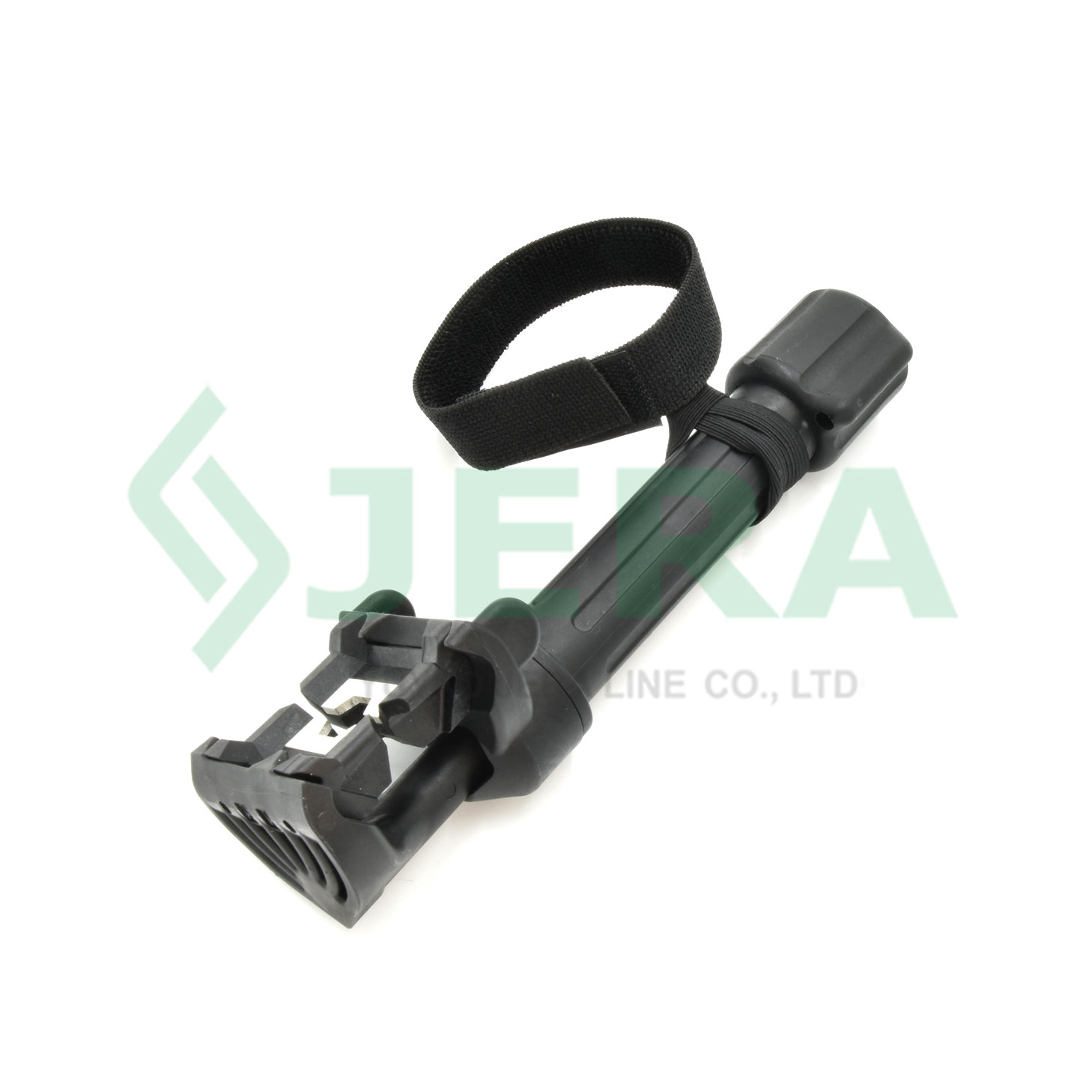

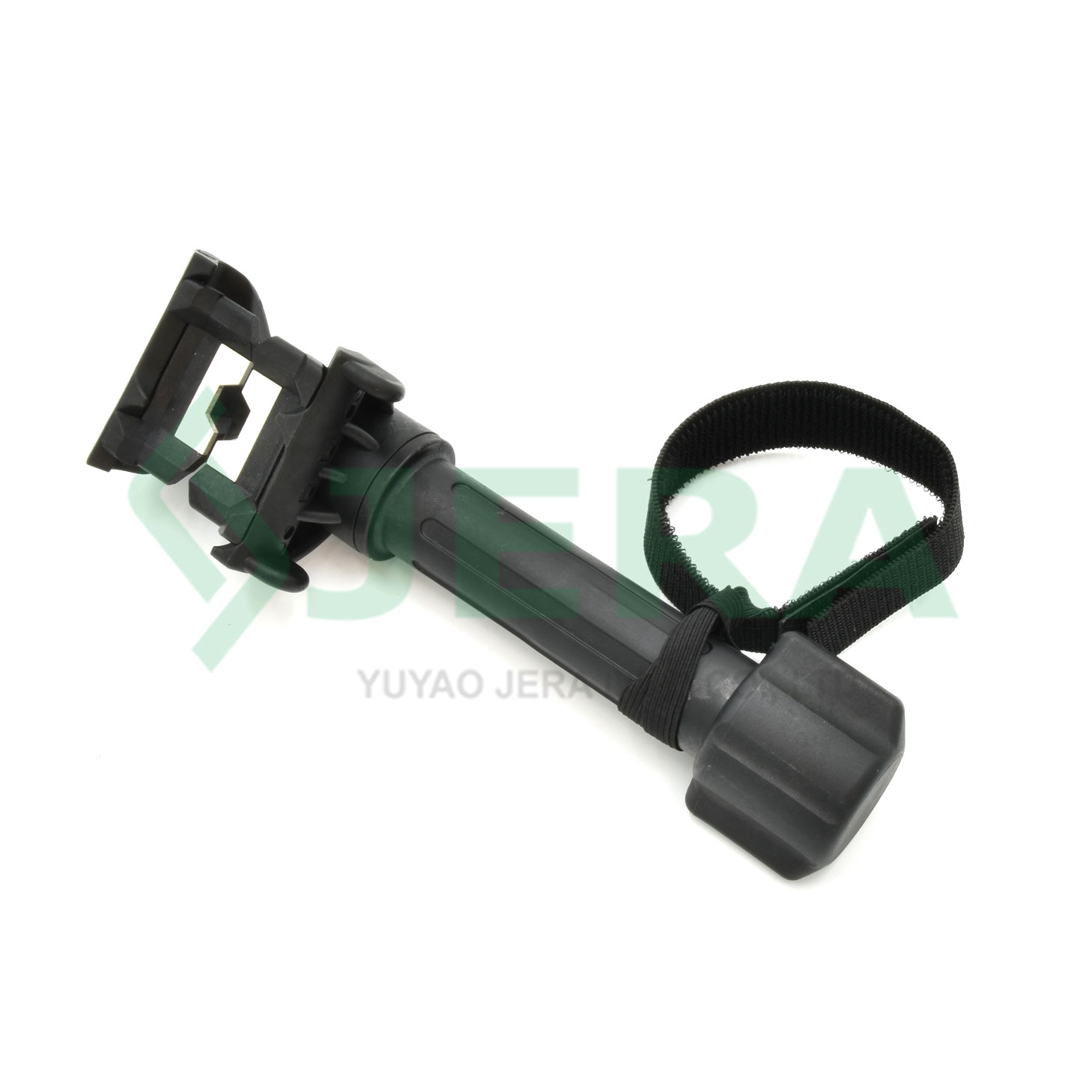

Holding tool for Insulation piercing connectors JTN-7-17

IPC connectors holding tool JTN-7-17, Low voltage installation tool, dielectric tool for Hex 17 IPC connectors

Features

Used for Hex 17 IPCs
Comply to Jera Line ZOP-61/ZOP-62 models.
Dielectric voltage up to 1000AC.
Proven clamping system for IPC holding.
Manufactured from high quality materials, suitable for low temperatures down to -40 °C, and high temperatures up to 50 °C.
Shock proof, one piece design.
Convenient for field use – IPC is securely fixed inside the tool

DESCRIPTION

TEST

REVIEW

Application

The JTN‑7‑17 holding tool is designed for securing insulation‑piercing connectors (IPCs) during the installation in overhead distribution networks. It is mainly used with power cables in overhead and outdoor connection systems, including street lighting and general low‑voltage/solar cable wiring applications.

Technical specification

Product code	Application	Dielectric strength
JTN-7-17	Insulation piercing connectors: Hex 17 models	1000V

Components and materials

Holding tool JTN-7-17, produced by Jera Line’s direct factory. The clamp consists of following main parts:

Components	Materials
Shaft mechanism	Stainless steel, brass
Body	UV resistant, fiberglass reinforced polymer
Moving clamp	UV resistant, fiberglass reinforced polymer
IPC holder	Aluminum

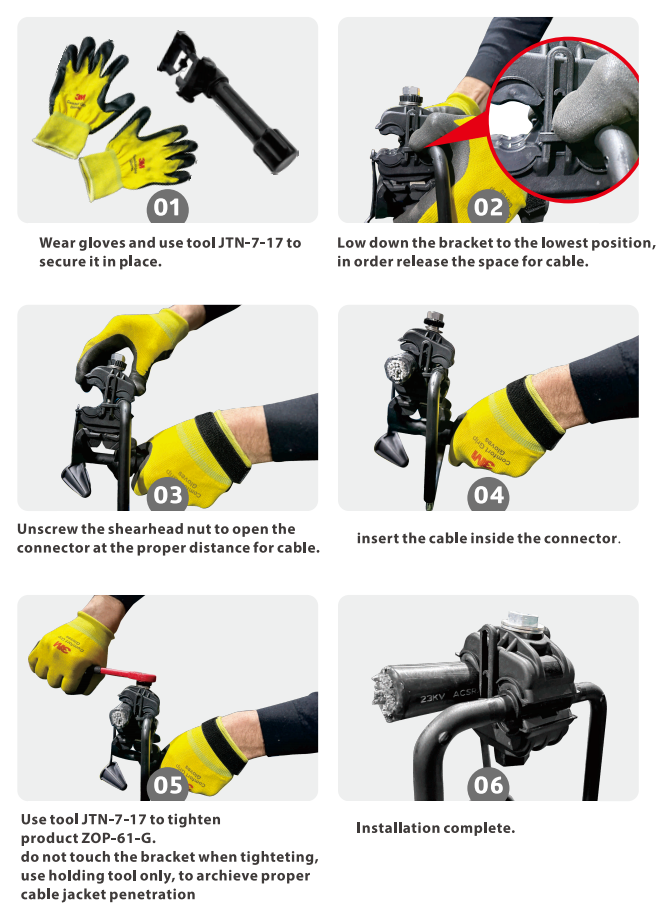

Key Installation steps

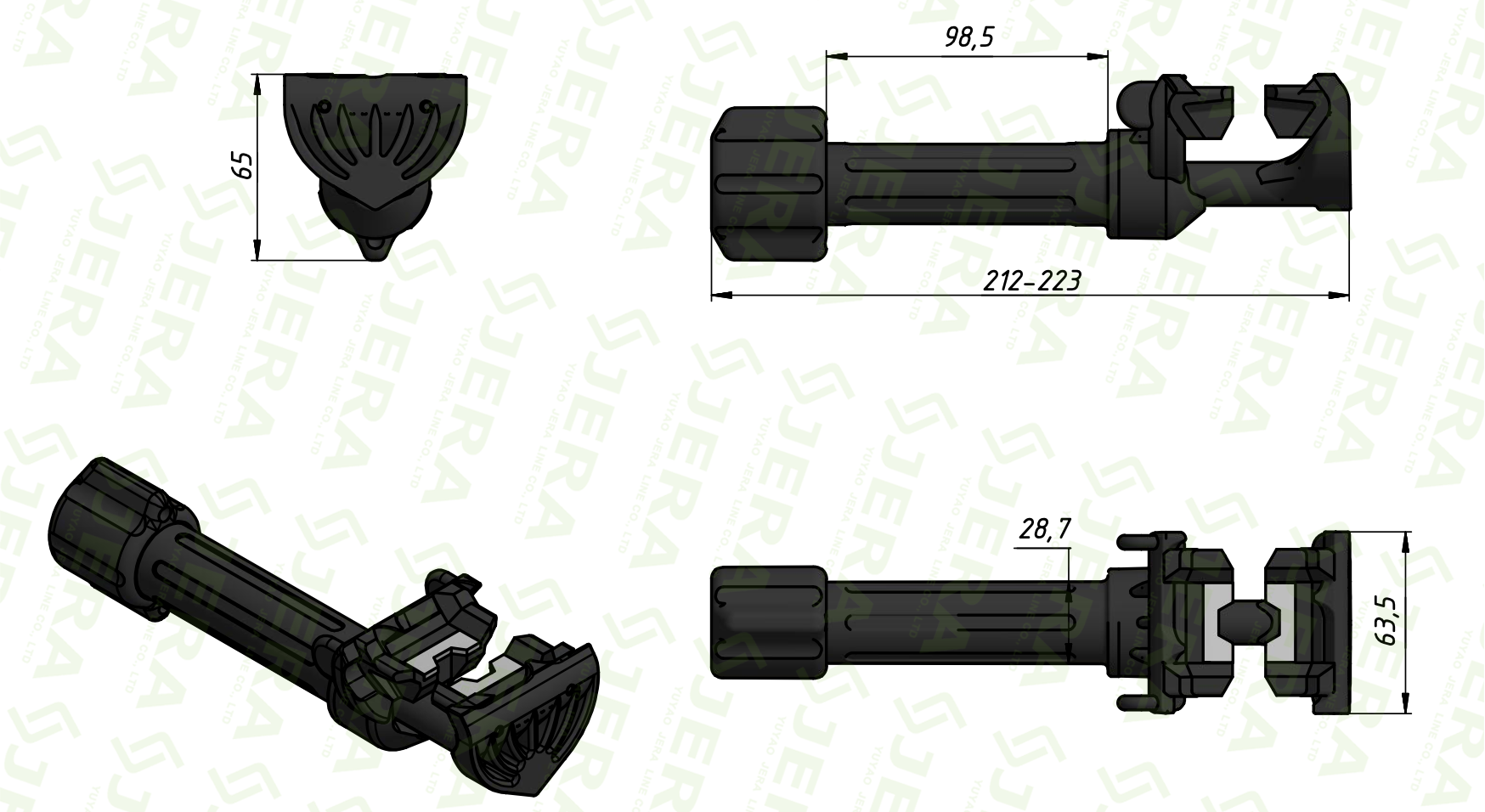

Dimensions

Test

JTN-7-17 LV IPC holding tool has undergone rigorous Environmental performance validation as well as Mechanical properties & performance validation by Jera Line Laboratory. Such as:

● Maximum tensile strength tests by tensile strength machine

● High and low-temperature cycling tests, Temperature & Humidity aging equipment
