Low voltage (LV) overhead ABC aerial bundled cable grids constitute the core power distribution infrastructure for residential communities, municipal street lighting, rural grid upgrade and distributed photovoltaic power stations worldwide. Insulation piercing connectors (IPC) represented by the JBC series are widely adopted global tapping fittings for LV overhead networks, recognized for shear‑head torque control, no‑insulation‑stripping installation and bimetal cable compatibility. However, many electrical distributors, grid EPC contractors and new energy integrators face pain points including long lead times, high import costs and limited customization support when sourcing original JBC connectors.
Jera Line a professional LV & MV cable accessory manufacturer founded in 2012, developed a full lineup of ZOP series insulation piercing connectors as fully interchangeable equivalents for all mainstream JBC single‑bolt and double‑bolt IPC models. Matching JBC's dimensional standards, torque parameters and international certification requirements, Jera Line ZOP series delivers identical field performance with more competitive pricing and flexible OEM support. This blog elaborates product matching definition, unified technical cross‑reference table, structural material advantages, all‑scenario LV grid applications and core cooperative strengths of choosing Jera Line ZOP as your JBC equivalent supplier.
Jera Line ZOP equivalent IPCs are tailor‑designed full replacement tapping fittings compatible with complete JBC model range for 0.6/1kV LV ABC overhead grids. Original JBC products cover single‑bolt small‑size service tap types (JBC‑1, JBC‑2, JBC‑3) and double‑bolt heavy‑load trunk line models (JBC50‑240), while Jera Line ZOP equivalent IPCs are tailor‑designed full replacement tapping fittings compatible with complete JBC model range for 0.6/1kV LV ABC overhead grids. Original JBC products cover single‑bolt small‑size service tap types (JBC‑1, JBC‑2, JBC‑3) and double‑bolt heavy‑load trunk line models (JBC50‑240), while Jera Line develops corresponding ZOP single‑bolt and dual‑bolt variants to achieve 1:1 interchangeability on installation size, cable clamping range and preset shear torque.
Jera develops corresponding ZOP single‑bolt and dual‑bolt variants to achieve 1:1 interchangeability on installation size, cable clamping range and preset shear torque.
Identical to JBC's mature structure, Jera Line ZOP connectors integrate built‑in high‑viscosity silicone waterproof sealing gel, paired with tin‑plated aluminum bimetal piercing teeth. Electricians complete live‑line branch tapping without stripping cable insulation, cutting conductors or wrapping supplementary insulating tape. Serrated metal teeth automatically pierce cable outer sheath and insulation to form stable conductive contact, while elastomer sealing rings fully block rainwater, coastal salt fog and dust intrusion. Calibrated shear‑off aluminum alloy nuts break automatically once reaching standard torque value, eliminating inconsistent installation pressure caused by unskilled operators, the same quality control logic as original JBC series.
The outer shell adopts UV‑resistant fiberglass composite polymer via two‑component insert molding, stably operating between ‑40℃ and +55℃ to adapt to cold northern, tropical humid and desert high‑temperature LV grid environments.
All ZOP equivalent models fully pass EN‑50483:4, NF C 33 020 routine and type tests inside Jera Line's ISO/IEC 17025 accredited in‑house laboratory，it meets global power tender document standards, completely matching JBC's certification system without extra qualification adaptation costs.

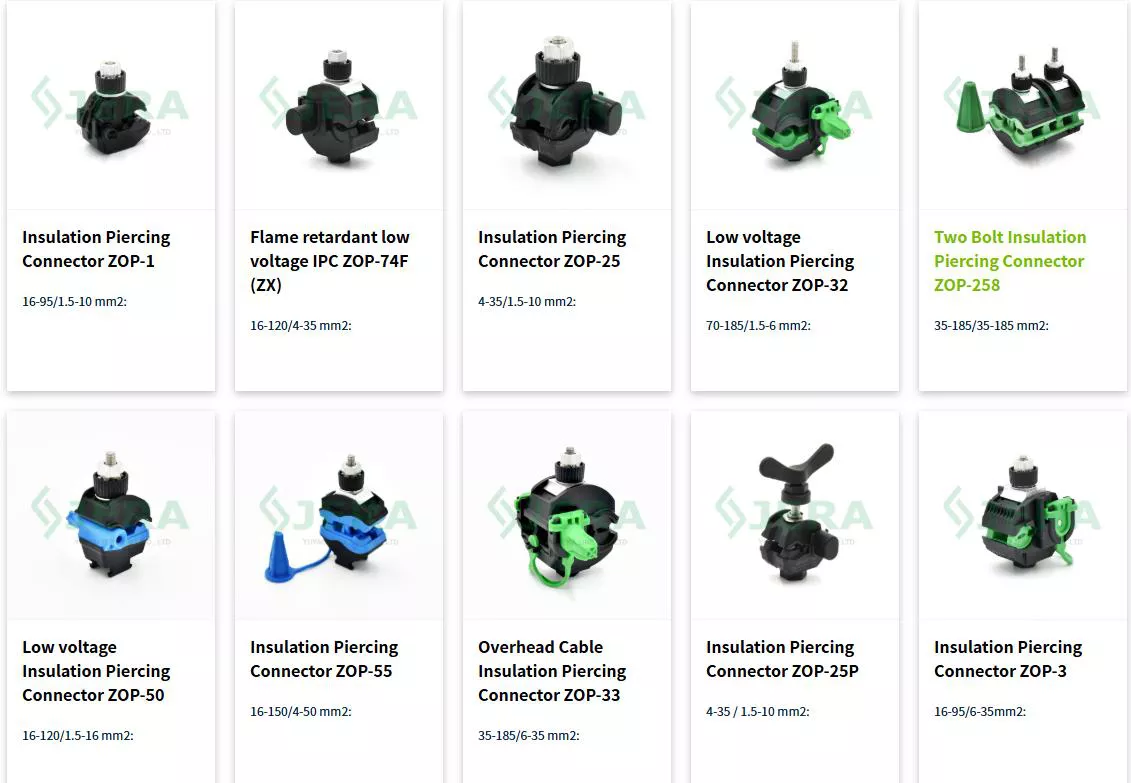

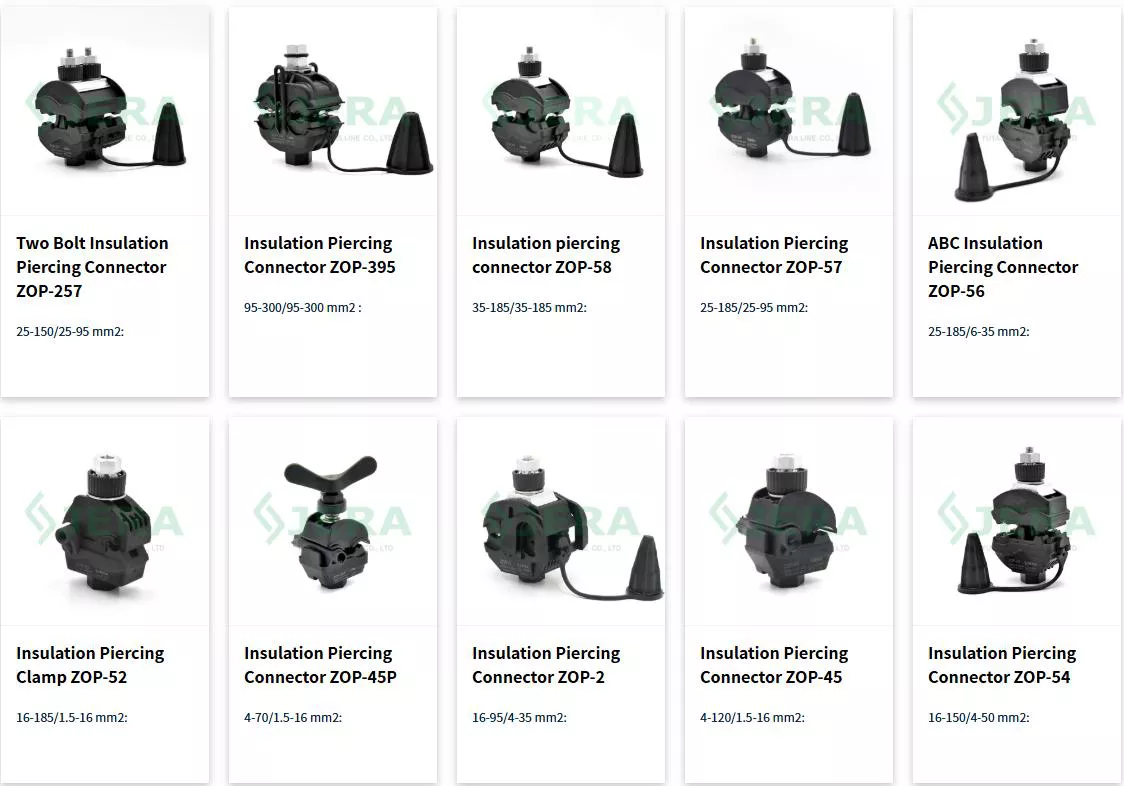

Technical Cross Reference: Jera Line ZOP VS JBC Equivalent Models:
Single‑bolt JBC Equivalent ZOP Models
| Jera Product code | Matching JBC Model | Main line, mm² | Branch line, mm² |
|---|---|---|---|
| ZOP‑45 | JBC‑1 | 4‑‑120 | 1.5‑‑16 |
| ZOP‑1 | JBC‑2 | 16‑‑95 | 1.5‑‑10 |
| ZOP‑55 | JBC‑3 | 16‑‑150 | 4‑‑50 |
Double‑bolt Heavy Load JBC Equivalent ZOP Models
| Jera Product code | Matching JBC Model | Main line, mm² | Branch line, mm² |
|---|---|---|---|
| ZOP‑257 | JBC25‑95 Double bolt | 25‑‑150 | 25‑‑95 |
| ZOP‑258 | JBC50‑240 Double bolt | 35‑‑185 | 35‑‑185 |
All Jera Line ZOP JBC equivalent insulation piercing connectors adopt stainless steel anti‑rust bolts and integrated IP68 waterproof cavity structure, supporting mixed copper‑aluminum cable connection without electrochemical corrosion risks. Each finished production batch can provide SGS or BV third‑party inspection certificates, fully complying with overseas grid tender requirements.
Features of Jera Line ZOP JBC Equivalent IPCs
Jera Line strictly copies JBC's overall dimension, cable clamping arc curvature and shear bolt torque standard during mold development. Contractors can directly replace JBC with ZOP on existing overhead lines without adjusting installation tools or construction processes. Vibration cycle lab testing verifies that ZOP maintains consistent contact resistance after 1000 vibration cycles, effectively solving the loose contact and overheating hidden danger that often appears on long‑term wind‑shocked overhead lines, matching or exceeding JBC's mechanical stability performance.
Fully enclosed cavity locked by single or dual shear bolts, with silicone sealant filling all assembly gaps. It delivers stable operation in coastal salt fog zones, rainy mountainous areas and farmland LV grids where ordinary low‑grade connectors fail quickly due to moisture erosion. The UV reinforced nylon shell avoids cracking and aging under long‑term outdoor sunlight exposure, extending service life consistent with original JBC standards.
Tin‑plated aluminum piercing teeth form an isolation buffer between copper and aluminum conductors, eliminating electrochemical corrosion and overheating at branch joints. Electrical contractors only need one complete ZOP series to finish mixed aluminum main line + copper service line grid construction, cutting inventory costs and wrong model selection risks compared to stocking multiple JBC variants.
No professional torque measuring tools required during installation. The shear nut automatically breaks at factory‑calibrated rated torque, unifying tapping point construction quality across entire grid projects and lowering rework rate by over 70%, the same standardized installation advantage of JBC series.
Small‑size ZOP‑45 targets street lighting and household single‑phase service taps matching JBC‑1; medium‑range ZOP‑1/ZOP‑55 fit residential and commercial three‑phase overhead distribution equivalent to JBC‑2/JBC‑3; dual‑bolt ZOP‑257/ZOP‑258 adapt large‑section industrial trunk and photovoltaic microgrid cables as full replacements for double‑bolt JBC heavy‑load models, forming a one‑stop size matching solution covering light, medium and heavy‑load LV overhead networks.
ZOP‑1 and ZOP‑55 are preferred JBC alternatives for apartment blocks, shopping malls and community three‑phase ABC overhead grids, enabling live‑line power branch without cutting mains supply to reduce resident power outage complaints.
Single‑bolt ZOP‑45 replaces JBC‑1 for roadside lamp branch tapping; its anti‑vibration shell resists long‑term vehicle vibration along traffic routes, lowering routine grid maintenance workload and extending joint service life.
Dual‑bolt ZOP‑258, equivalent to JBC50‑240, matches 35‑‑185 mm² thick aluminum trunk cables for factory power supply, stably transmitting heavy industrial current under day‑night temperature alternation.
Suitable for rooftop and ground PV station grid‑connected branch lines, adapting frequent outdoor temperature fluctuations of new energy LV grids with stable long‑term conductive performance, fully interchangeable with JBC PV tapping fittings.
Most rural LV grids adopt large‑section aluminum ABC cables; symmetric dual‑bolt clamping of ZOP‑257 solves the poor contact defect frequently occurring when single‑bolt JBC clamps are applied on oversized aluminum conductors.
Founded in 2012, Jera Line owns full‑automatic injection molding, CNC metal processing and automated assembly production lines. All ZOP series molds for JBC equivalent connectors are independently developed by in‑house engineering teams, removing middleman markup to provide competitive bulk pricing for global LV grid contractors. Standard ZOP models maintain permanent stock, guaranteeing stable 7‑‑15 working day delivery cycles to solve original JBC's long import lead time shortage issue.
Jera Line provide one‑stop personalized services including laser customer logo marking, exclusive color box packaging, torque parameter fine‑tuning and special‑size mold development to match different country LV grid specifications. Free product samples are offered for project performance testing, with low minimum order quantities for trial bulk orders unavailable from standardized JBC original suppliers.
Jera Line's on‑site testing laboratory equips dielectric water bath testers, temperature‑humidity aging cabinets and salt spray testing machines. Every batch of ZOP JBC equivalent IPCs completes visual inspection, dimensional verification, shear function test and water voltage withstand test according to EN‑50483:4 standards before shipment. All products carry a 5‑year factory warranty, with free replacement for non‑artificial manufacturing defects, exceeding the standard warranty cycle of imported JBC connectors.
Our LV cable accessories have been exported to more than 60 countries across Europe, Africa, Southeast Asia and the Middle East. The multilingual foreign trade team is fully familiar with local LV grid standards, tender document requirements and customs clearance procedures, providing one‑stop service from model selection to after‑sales technical guidance for distributors and EPCs switching from JBC to JERA equivalents.
Besides ZOP series JBC equivalent insulation piercing connectors, JERA Line manufactures matching anchor clamps, suspension clamps, pole brackets and surge arresters. Clients can purchase all required LV grid fittings from a single manufacturer, reducing multi‑supplier communication costs and comprehensive logistics expenses compared to separately sourcing JBC connectors and other hardware accessories.
For global LV grid projects requiring cost‑effective, fully interchangeable replacements for JBC series insulation piercing connectors, JERA ZOP single and double‑bolt IPCs deliver equivalent electrical and mechanical performance while solving original JBC's pain points of high price, long lead time and limited customization. With balanced clamping design, universal copper‑aluminum compatibility, full international standard certification and factory‑direct cost advantages, the ZOP equivalent series has become the preferred tapping solution for power distributors, grid EPC contractors and photovoltaic integrators replacing traditional JBC IPC connectors.
If you are sourcing reliable JBC equivalent insulation piercing connectors for residential, industrial or photovoltaic LV overhead grids, feel free to contact the Jera Line team to apply for free test samples, download complete technical datasheets and obtain exclusive quotations tailored to your project order volume.
